Products Description

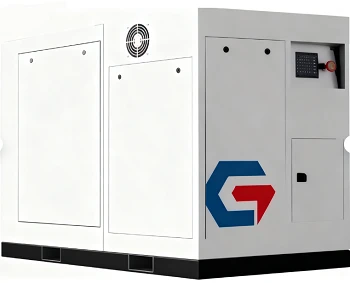

Our Air Suspension Blower, as an innovative device in modern industrial fields, plays a key role in many industries with its unique technological advantages and outstanding performance.
- It integrates advanced air suspension bearing technology, high-speed motor drive system, and efficient centrifugal impeller design, providing efficient, stable, and energy-saving solutions for various process flows.
-
Our Air Suspension Blower's high-speed motor quickly drives the centrifugal impeller to rotate at high speed.
Under the strong action of centrifugal force, the processed material is quickly sucked in and accelerated, and the separation of different components is achieved through centrifugal force.
The air suspension bearings play a crucial role in this process. They use high-pressure air to form a stable air film between the shaft and bearings, suspend the shaft, and achieve non-contact operation.
Our Air Suspension Blower adopts a three element flow impeller design (efficiency ≥ 88%) and a high-speed direct drive motor, which saves 25% -35% energy compared to traditional Roots blowers.
Safe And Stable
Our Air Suspension Blower's air suspension bearing system replaces lubricating oil with air buoyancy, avoiding the oil pollution problem of traditional oily bearing systems. The transported gas is pure and oil-free, meeting the strict requirements of industries such as electronics, medicine, and food for gas cleanliness, while reducing the cost and complexity of oil pollution treatment during equipment maintenance.
Good Sealing Performance
Our Air Suspension Blower can also be used in the textile industry. In the textile workshop, air suspension centrifuges are responsible for ventilation, cooling, and humidity regulation, creating a suitable operating environment for textile equipment, reducing yarn breakage and fabric defects caused by temperature and humidity issues, and improving textile quality and production efficiency. In the printing and dyeing process, it provides a stable air source for equipment such as dyeing machines and dryers, ensuring dyeing uniformity and drying effect. A large textile printing and dyeing enterprise introduced multiple air suspension centrifuges, which reduced the fabric defect rate by 15% and energy costs by 18%, effectively enhancing the enterprise's market competitiveness.
Hot Tags: air suspension blower, China air suspension blower manufacturers, suppliers, factory, mulch blower for sale, homemade muck blower, air blower price, muck blower, stand on blower, mist blower
Technical Parameters
| Model | Type | Power kw |
Exhaust volume m³/min |
Exhaust pressure |
Overall dimension mm |
Weight kg |
outlet size |
| TKLXG30 | Single impeller | 22 | 24 | 0.4 | 700×1600×1380 | 470 | DN150 |
| 21 | 0.6 | 430 | |||||
| 17 | 0.8 | ||||||
| 13 | 1.0 | ||||||
| TKLXG50 | Single impeller | 37 | 47 | 0.4 | 850×1775×1670 | 560 | DN200 |
| 34 | 0.6 | 700×1600×1380 | 470 | DN150 | |||
| 28 | 0.8 | ||||||
| 22 | 1.0 | ||||||
| TKLXG75 | Single impeller | 55 | 61 | 0.4 | 850×1775×1670 | 560 | DN200 |
| 51 | 0.6 | ||||||
| 42 | 0.8 | ||||||
| 34 | 1.0 | ||||||
| TKLXG100 | Single impeller | 75 | 82 | 0.4 | 850×1775×1670 | 560 | DN200 |
| 69 | 0.6 | 610 | |||||
| 55 | 0.8 | ||||||
| 45 | 1.0 | ||||||
| TKLXG125 | Single impeller | 90 | 101 | 0.4 | 1000×1975×1877 | 820 | DN300 |
| 86 | 0.6 | 850×1775×1670 | 700 | DN200 | |||
| 71 | 0.8 | ||||||
| 53 | 1.0 | ||||||
| TKLXG15O | Single impeller | 110 | 125 | 0.4 | 1000×1975×1877 | 870 | DN300 |
| 105 | 0.6 | 820 | |||||
| 84 | 0.8 | ||||||
| 65 | 1.0 | ||||||
| TKLXG200 | Single impeller | 150 | 165 | 0.4 | 1150×1975×1877 | 910 | DN300 |
| 140 | 0.6 | 1000×1975×1877 | 870 | ||||
| 109 | 0.8 | ||||||
| 87 | 1.0 | ||||||
| TKLXG25O | Single impeller | 185 | 193 | 0.4 | 1300×2350×2100 | 1600 | DN400 |
| 165 | 0.6 | 1150×1975×1877 | 910 | DN300 | |||
| 135 | 0.8 | ||||||
| 105 | 1.0 | ||||||
| TKLXG300 | Double bladed | 220 | 266 | 0.4 | 1750×2350×2100 | 2150 | DN500 |
| 210 | 0.6 | 1300×2350×2100 | 1600 | DN400 | |||
| 164 | 0.8 | ||||||
| 133 | 1.0 | DN300 | |||||
| TKLXG400 | Double bladed | 300 | 331 | 0.4 | 1750×2350×2100 | 2150 | DN500 |
| 272 | 0.6 | DN400 | |||||
| 216 | 0.8 | ||||||
| 172 | 1.0 |
